Why isnt this "X" symmetrical?

Recommended Posts

BrenFunk

Hey, wondering if anyone can explain why some X's are designed asymmetrically? Noticed it in a few fonts, the example shown here is a capital X from Frutiger Ultra Black. Thanks.

Frutiger X Ultra Black.jpg

Share this post


Link to post
Ralf Herrmann

It’s one of the many optical corrections type designers usually add. Not everything that would be mathematically correct, looks correct. In this case, you have interacting diagonals which is troublesome. Google “optical illusion parallel lines” for example.

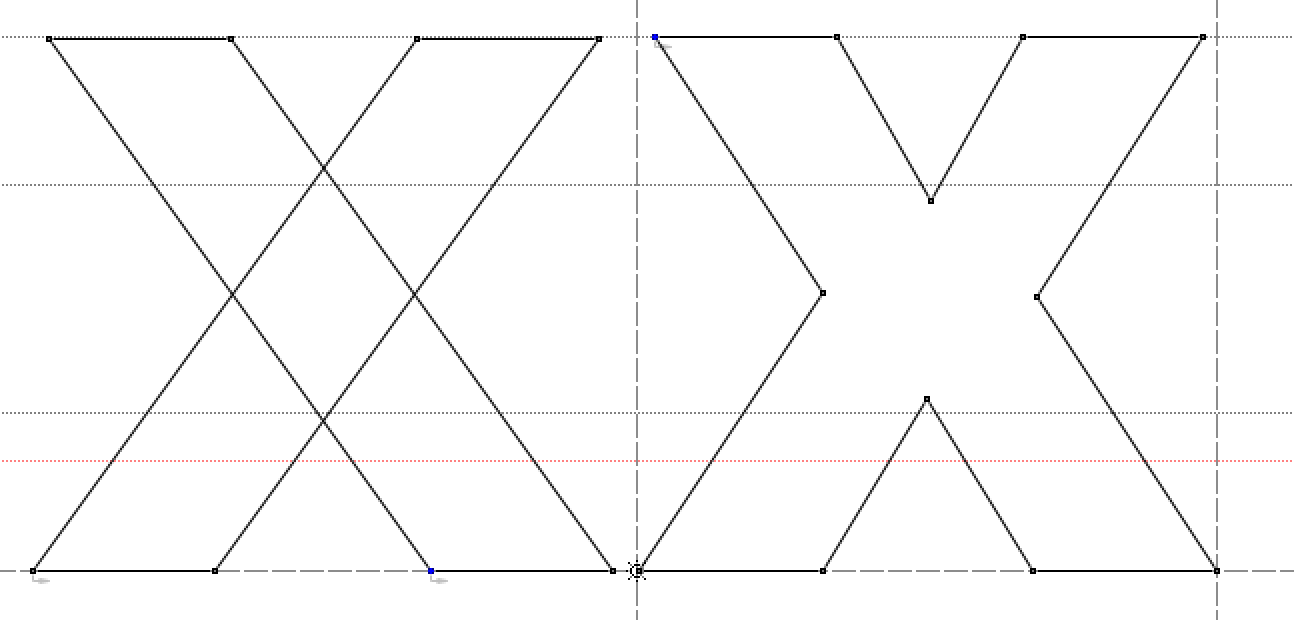

Here is Arial without compensation (left) and the actual version (right).
Which one would you prefer?

Bildschirmfoto 2018-08-30 um 10.00.29.png

Bildschirmfoto 2018-08-30 um 10.00.18.png

  • Like 3

Share this post


Link to post
BrenFunk

Thanks Ralf, makes sense.
